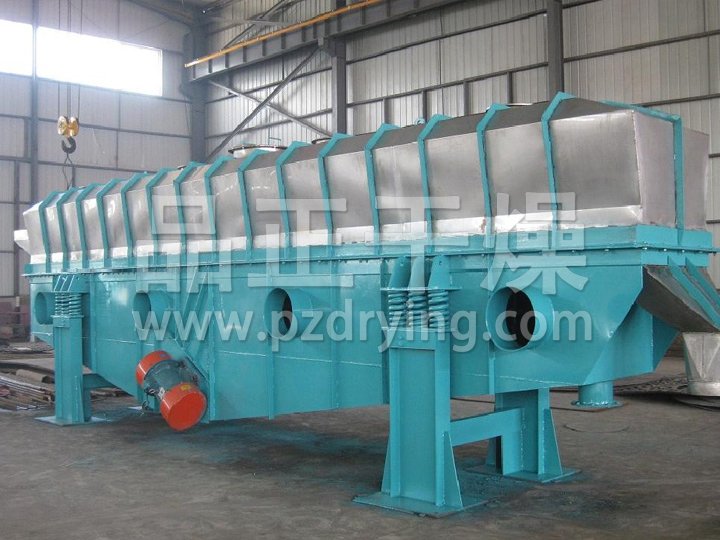

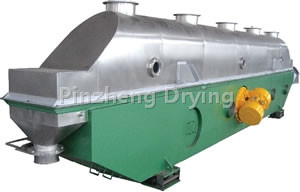

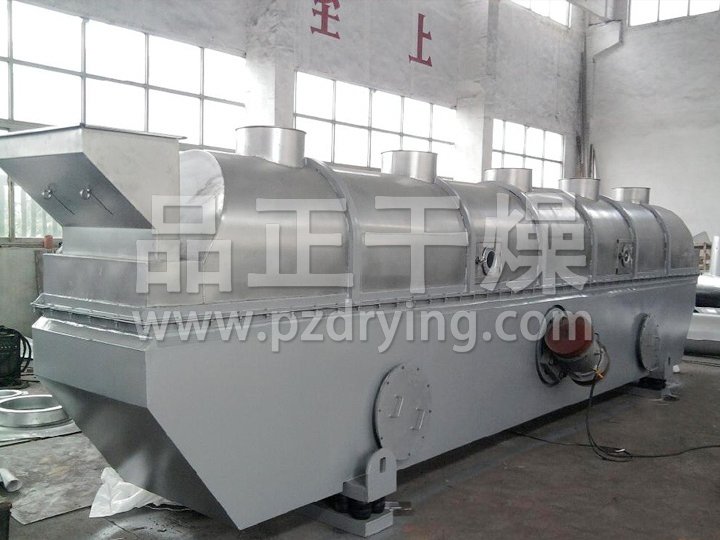

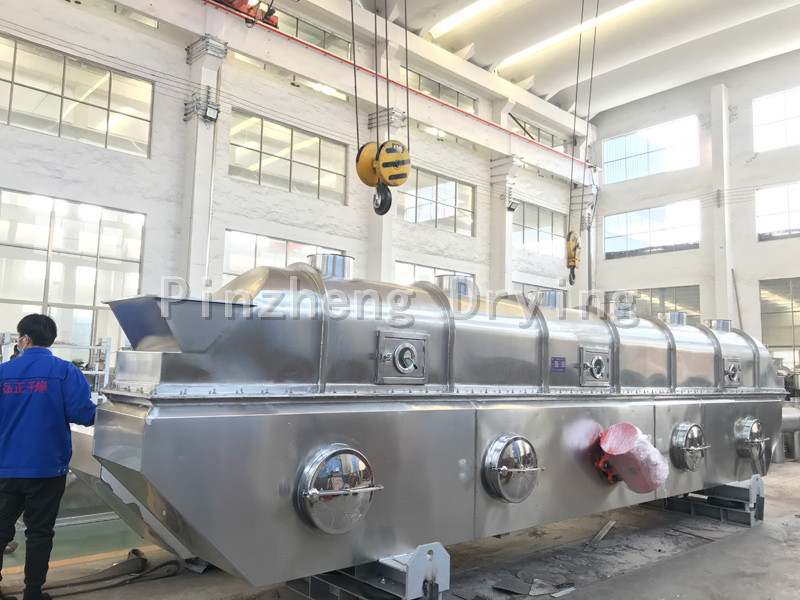

ZLG series vibrating fluidized bed dryer
Fluidized bed dryer is a kind of dryer in which materials enter the machine from the feed inlet. Under the action of vibration, materials are thrown along the horizontal fluidized bed and move forward continuously. The hot air passes through the fluidized bed upward and exchanges heat with the wet materials. After the wet air is removed by the cyclone separator, it is discharged by the exhaust air 1:3, and the dry materials are discharged from the discharge inlet.
0519-88910291
Details



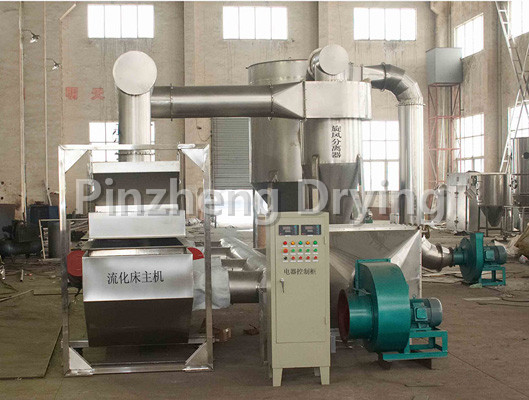

Working principle

  The material enters the machine from the feed inlet. Under the action of the vibration force, the material is thrown along the horizontal fluidized bed and moves forward continuously. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air is discharged by the exhaust 1:3 after the dust is removed by the cyclone separator, and the dry material is discharged by the exhaust inlet.

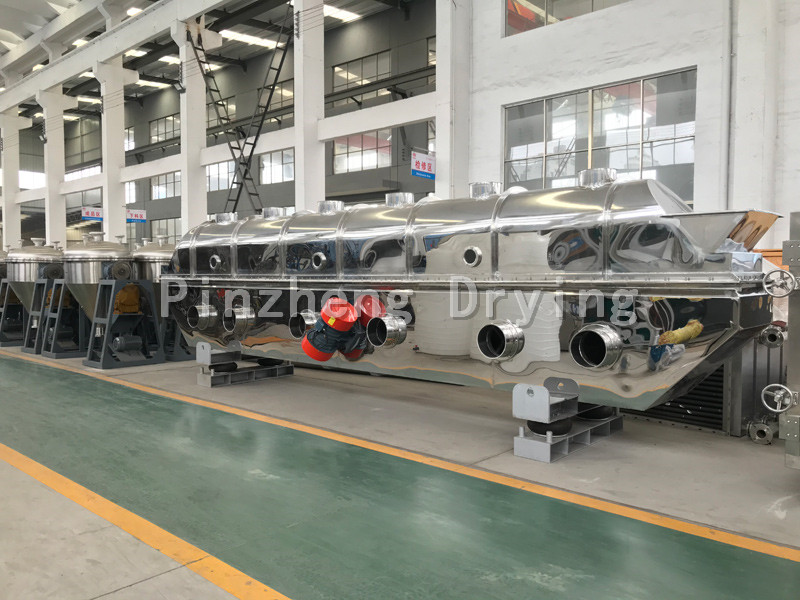

Performance characteristics1.jpg

◎ The vibration source is driven by a vibration motor, with stable operation, convenient maintenance, low noise and long service life.

◎ The fluidization is uniform, without dead space and blowing through, and can obtain uniform drying and cooling products.

◎ Good adjustability and wide application. The thickness of the material layer, the movement speed in the machine and the full amplitude change can realize stepless adjustment.

◎ It has little damage to the material surface and can be used for drying fragile materials. The irregular material particles will not affect the working effect.

◎ Fully enclosed structure is adopted to effectively prevent cross infection between materials and air, and the working environment is clean.

◎ High mechanical efficiency and thermal efficiency, good energy saving effect, 30-60% energy saving compared with general drying device.

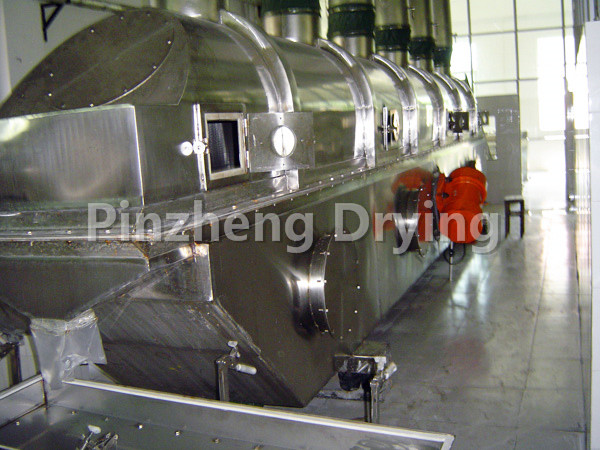

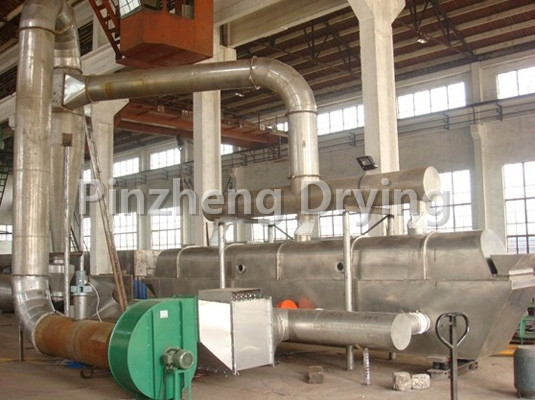

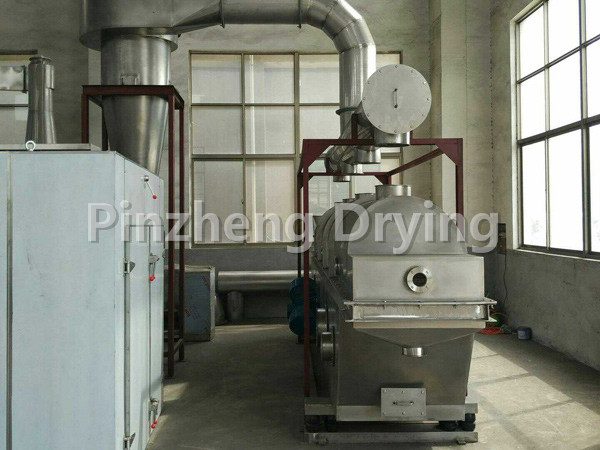

Applicable materials
  It is applicable to the drying and cooling of powder and granular materials in chemical, pharmaceutical, food, dehydrated vegetables, grain, mineral and other industries. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, shredded radish, soybean meal, distiller's grains, seeds, slag, granulated sugar, etc.

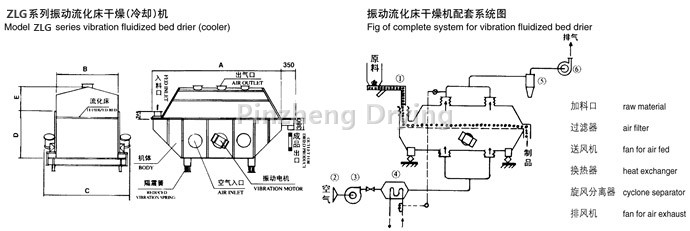

Structure diagram


Parameter


Measurement
Model
ABCDEFWeight(kg)
ZLG3×0.303000300135090043016501250
ZLG4.5×0.304500300135090043016501250
ZLG4.5×0.454500450155095043017001670
ZLG4.5×0.604500600165095043017001670
ZLG6×0.456000450165095043017002100
ZLG6×0.6060006001700100050017002410
ZLG6×0.7560007501850100060018502840
ZLG6×0.960009002000100060018503160
ZLG7.5×0.6075006001850100060018503200
ZLG7.5×0.7575007502000100060018503600
ZLG7.5×0.975009002100100060018504140
ZLG7.5×1.2750012002500115080020505190


TypeFluidized bed area
()
Inlet air temperature
(oC)
Air outlet temperature
(oC)
Evaporation capacity
(kg)
Vibration motor
ModelPower Kw
ZLG3×0.300.970-14040-7020-35ZDS31-60.8×2
ZLG4.5×0.301.3570-14040-7035-50ZDS31-60.8×2
ZLG4.5×0.452.02570-14040-7050-70ZDS32-61.1×2
ZLG4.5×0.602.770-14040-7070-90ZDS32-61.1×2
ZLG6×0.452.770-14040-7080-100ZDS41-61.5×2
ZLG6×0.603.670-14040-70100-130ZDS41-61.5×2
ZLG6×0.754.570-14040-70120-140ZDS42-62.2×2
ZLG6×0.95.470-14040-70140-170ZDS42-62.2×2
ZLG7.5×0.604.570-14040-70130-150ZDS42-62.2×2
ZLG7.5×0.755.62570-14040-70150-180ZDS51-63.0×2
ZLG7.5×0.96.7570-14040-70160-210ZDS51-63.0×2
ZLG7.5×1.2970-14040-70200-260ZDS51-63.0×2

★ The above evaporation is the maximum evaporation.
