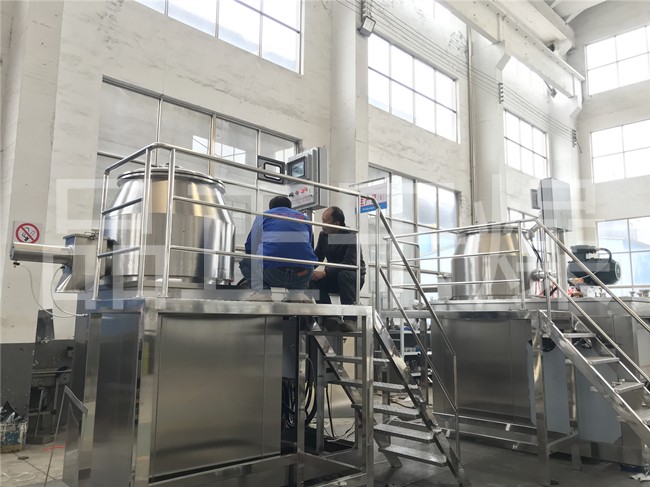

High-speed wet mixing granulator - working principle

　　The materials that enter the container through vacuum suction (or manual feeding) are mixed and added with adhesive, and then move in a circular, radial and axial direction under the action of the modified stirrer, and are fully mixed, and then cut into uniform and dense spherical particles by the granulation cutter.

Swing granulator - General

1、This machine can grind wet powder raw materials into particles through iron wire sieve (or perforated mesh) by using the swing action of rotary drum, and can also be widely used to crush crushed blocks and become ready-made particles.

2、In the field of chemicals, it can be used as wet-bonded powder to grind into granules, and then dried for tablet preparation. It can also be used to crush the lumps that are condensed during storage or formed during chemical processing. In the food industry, it is used for processing candy and sugar mixture, malt milk, etc. In other industries, such as ceramics, plastics and other mixtures become formed particles.

3、It is not only suitable for semi-solid, liquid, slurry or grinding.

Boiling granulator dryer (one-step granulator) - working principle

　　After being filtered and heated, the air enters the granulation chamber from the airflow distribution plate, and the powder in it is suspended to form a fluidized state due to the combined action of the airflow and its own gravity. Compressed air and adhesive enter the nozzle from their respective pipes, atomize the adhesive into small droplets at the nozzle, and spray it on the fluidized powder to form particles. During this process, the left and right exhaust valves and air cylinders act alternately periodically to clean up the powder adsorbed on the collecting bag and make it fall back to the granulation chamber, so as to complete the mixing, granulation and drying operations.

One-dimensional motion mixer - features

1、This machine is used for mixing powder and granule in medicine, chemical industry, food, dye, feed, fertilizer, pesticide and other industries.

2、Simple structure and convenient operation.

3、During operation, the loading cylinder rotates around the central axis (referred to as "one-dimensional motion"), while the material in the cylinder moves in three-dimensional motion, so the mixing accuracy of the material can be comparable to that of two-dimensional and three-dimensional motion mixers.
